How to Install Windows 11 on Older PCs Without TPM 2.0: Complete Guide for Low-Spec Machines (Data-Preserving Online Upgrade)

If you have a somewhat older computer, maybe from several years ago, and want to upgrade to Windows 11, you’ve probably run into the well-known TPM 2.0 and certain CPU requirements that Windows 11 enforces. This issue has stopped many users because their machines don’t meet these security or hardware conditions, and therefore can’t officially install the new operating system.

But… is it really impossible to install Windows 11 on those machines? Is there a safe and practical way to bypass these requirements and enjoy Windows 11 benefits without losing your data? The answer is yes.

In this 100% practical guide, I’ll explain:

• What TPM 2.0 is and why Windows 11 requires it.

• How to check if your PC has TPM 2.0 or not.

• Three safe and proven methods to bypass TPM and CPU checks during installation.

• Recommendations to install and optimize Windows 11 on older or low-performance PCs.

• Risks and limitations of running Windows 11 without TPM 2.0.

• How to upgrade from Windows 10 to Windows 11 online without losing files and bypassing restrictions.

• Useful tools for installation and optimization.

What Is TPM 2.0 and Why Does Windows 11 Require It?

TPM stands for Trusted Platform Module. It is a physical chip integrated into the motherboard of the computer that provides advanced security features, such as:

• Encrypting hard drives (e.g., with BitLocker).

• Verifying system integrity during boot.

• Storing authentication data like Windows Hello credentials.

Windows 11 requires the device to have TPM version 2.0, along with UEFI boot mode and Secure Boot enabled, to increase the operating system’s security level. This protects against low-level attacks, firmware tampering, or unauthorized data access.

The problem? Many PCs manufactured before 2015, especially laptops with older Intel i3, i5 processors or AMD A-series CPUs, either don’t have this chip or have it disabled in BIOS.

How to Check If Your PC Has TPM 2.0

There are two quick and reliable ways to verify this:

Method 1: Check from Windows

1. Press Win + R to open the Run dialog.

2. Type tpm.msc and press Enter.

3. The “TPM Management” window will open.

   • If you see a message stating “The TPM is ready for use” and the version is 2.0, your PC meets the requirement!

   • If it says TPM not found or is disabled, then you don’t have TPM 2.0 enabled.

Method 2: Use the Official PC Health Check Tool

Microsoft provides the “PC Health Check” app that evaluates Windows 11 compatibility.

• Download and install the tool from Microsoft’s official website.

• Run it and check the results.

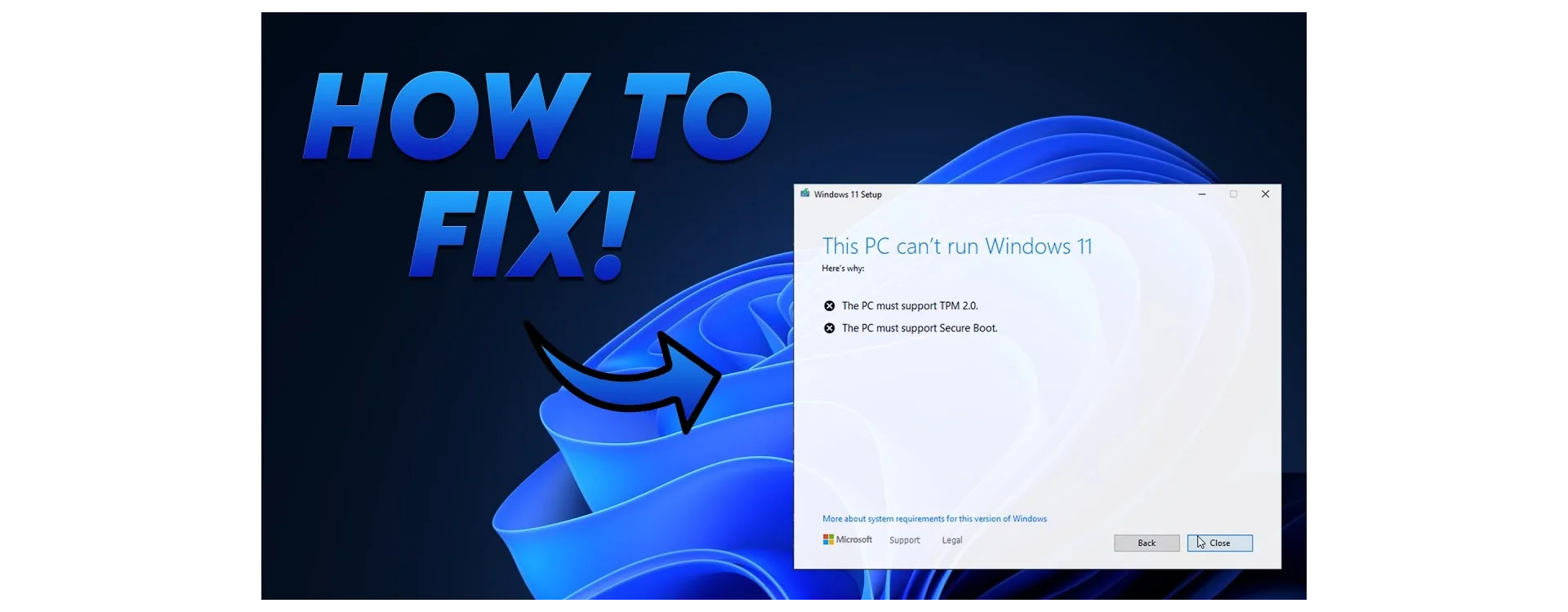

• If it says “This PC can’t run Windows 11,” it’s probably due to TPM or CPU incompatibility.

What to Do If Your PC Doesn’t Have TPM 2.0? Safe Methods to Install Windows 11

The good news is there are reliable ways to install Windows 11 on PCs without TPM 2.0 or supported CPUs without risking data loss or stability—even though Microsoft doesn’t officially recommend them. Here are the three most common and safe methods:

Method 1: Modify Windows Registry During Installation (Official Hidden Method)

In 2021, Microsoft quietly allowed a way to bypass TPM, CPU, and RAM checks during installation by setting a registry key. This works for both clean installs and upgrades.

Steps to use this method:

1. Create a bootable USB with the official Windows 11 installer (you can use Microsoft’s tool or Rufus).

2. Boot from the USB to start the installation.

3. When you reach the installation screen, press Shift + F10 to open the command prompt.

4. Type regedit and press Enter to open the registry editor.

5. Navigate to:

   HKEY_LOCAL_MACHINE\SYSTEM\Setup

6. Create a new key (folder) named LabConfig inside Setup.

7. Inside LabConfig, create the following DWORD (32-bit) values and set each to 1:

   • BypassTPMCheck

   • BypassSecureBootCheck

   • BypassRAMCheck

   • BypassCPUCheck

8. Close the registry editor and command prompt.

9. Continue with the installation normally.

This method skips the checks and allows Windows 11 to be installed on PCs without TPM 2.0 or unsupported CPUs.

Advantages:

• Uses the official installer without modifications.

• Compatible with USB or WinPE environment installs.

• Keeps updates functional.

Method 2: Use Rufus to Create a Bootable USB That Removes Requirements Automatically

Rufus is a free tool for creating bootable Windows USB drives. Its latest versions allow creating a USB that automatically removes TPM, Secure Boot, RAM, and CPU checks.

Steps:

1. Download Rufus from https://rufus.ie.

2. Download the official Windows 11 ISO from Microsoft.

3. Open Rufus and select the ISO.

4. You’ll see options to remove requirements:

   • “Remove TPM, Secure Boot, and RAM checks”

   • “Disable Microsoft account requirement”

5. Check those options.

6. Create the USB.

When you boot from this USB, you can install Windows 11 without hardware restrictions.

Method 3: Modify appraiser.dll in the ISO Image (Advanced Method)

This is a more technical approach intended for advanced users:

• Extract the Windows 11 ISO.

• Replace the appraiserres.dll or appraiser.dll file in the sources folder with the equivalent from Windows 10 or delete it.

• Repackage the ISO using tools like UltraISO or PowerISO.

• Install from this modified image.

This removes the module responsible for hardware checks.

Not recommended for novices as improper modification can cause errors.

Recommendations for Installing Windows 11 on Older PCs

Even if you bypass the restrictions, Windows 11 is still more demanding than Windows 10, so I recommend:

Not recommended to install Windows 11 on:

• PCs with less than 4 GB RAM.

• Systems with slow mechanical hard drives (HDD).

• Atom, Pentium Z, or low-power CPUs.

• Very old hardware without driver support.

How to Optimize Windows 11 After Installation on Low-End PCs

After installing Windows 11 on a limited system, apply these tweaks to improve performance:

• Disable visual effects: animations, transparency, shadows.

• Turn off automatic syncing of OneDrive and background services if unused.

• Use lighter Windows 11 editions like Enterprise LTSC.

• Use graphical tools like Wintoys to tweak the system interface.

• Disable automatic major version updates to avoid unexpected restarts or incompatibilities (via Group Policy or Wintoys).

What Are the Risks of Installing Windows 11 Without TPM 2.0?

While you can install and use it, keep in mind:

• You won’t have full official support from Microsoft; future updates are not guaranteed.

• Some security features like BitLocker won’t work.

• Certain drivers or updates may fail.

• Future Windows versions or updates may block installation without TPM.

• There is a theoretical (unproven in practice) risk of boot-level vulnerabilities due to missing TPM.

However, if you configure the system properly and block automatic major updates, everyday use should be fine.

How to Upgrade from Windows 10 to Windows 11 Without TPM and Without Losing Data?

If you already have Windows 10 and want to upgrade without clean installing and without losing files or apps, there are two methods to bypass the TPM block:

Method 1: Modify Registry + Use Official Windows 11 Installation Assistant

1. Press Win + R, type regedit, and open Registry Editor.

2. Navigate to:

   HKEY_LOCAL_MACHINE\SYSTEM\Setup\MoSetup

3. If the key doesn’t exist, create MoSetup.

4. On the right pane, create a new DWORD (32-bit) value called:

   AllowUpgradesWithUnsupportedTPMOrCPU

   and set it to 1.

5. Download the official Windows 11 Installation Assistant from Microsoft:
   https://www.microsoft.com/en-us/software-download/windows11
   (choose the “Windows 11 Installation Assistant” option)

6. Run the assistant to begin the upgrade, which will bypass TPM and CPU checks.

Method 2: Extract ISO and Run setup.exe with Modified Registry

1. Download the official Windows 11 ISO.

2. Use WinRAR or File Explorer to extract the ISO contents to a folder.

3. Modify the registry as above.

4. Run the setup.exe file from the extracted folder to start the upgrade while keeping files and apps.

5. Follow the prompts.

Pre-Upgrade Advice

• Backup all important data with tools like Macrium Reflect or similar.

• Check that drivers are updated, preferably to DCH versions, to avoid issues.

• Consider disabling automatic major Windows updates to maintain stability.

Useful Resources and Tools for Installation and Optimization

Conclusion: Should You Install Windows 11 on Your PC Without TPM 2.0?

• If you’re an advanced user, developer, or enthusiast willing to tweak settings, upgrading safely without losing basic functionality is possible.

• If your PC is very old (less than 8GB RAM, no SSD, very basic CPU), it might be better to stay on Windows 10, which will be supported for several more years.

• For older PCs with SSD and 8GB RAM, manually bypassing TPM and upgrading to Windows 11 is a good way to enjoy the new OS.

Frequently Asked Questions

Can I lose data during a bypass installation?
No, if you follow upgrade methods preserving files or install without formatting, no data loss occurs.

Will Windows Update still work?
Yes, but some major updates may show compatibility warnings or not install.

What about BitLocker and security features?
They won’t be available without TPM 2.0.
